It is often helpful to show the motion of the object by drawing a graph. Velocity-time graphs are used to study the variation of the velocity of an object with time.

The velocity-time graphs of an object, traveling on three different journeys

Along a straight road, are:

a) Constant Velocity

b) Constant Acceleration

c) Variable Acceleration

Download the pdf notes of Velocity-Time Graph class 11 Physics

Constant Velocity Graph

When the velocity of the body is constant then its velocity-time graph is a horizontal straight line.

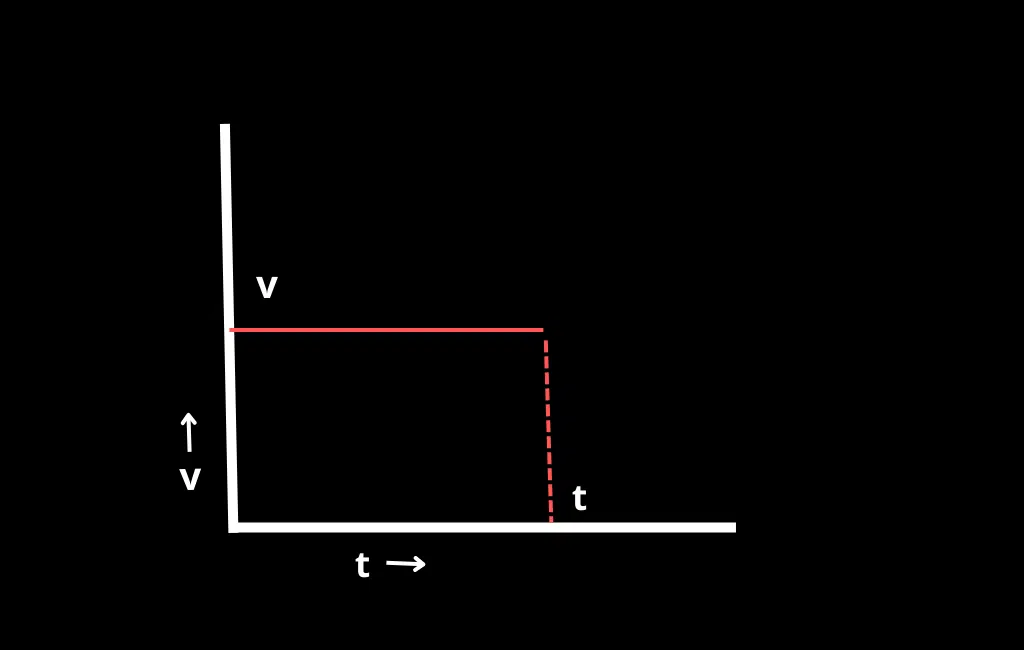

image showing the Constant Velocity-time Graph

The acceleration of the body is zero.

Screenshot 2022 06 27 151540

Constant Acceleration Graph

If equal velocity changes occur in equal intervals of time then the velocity-time graph is a straight line that raises the same height for equal intervals of time. The car moves with constant acceleration.

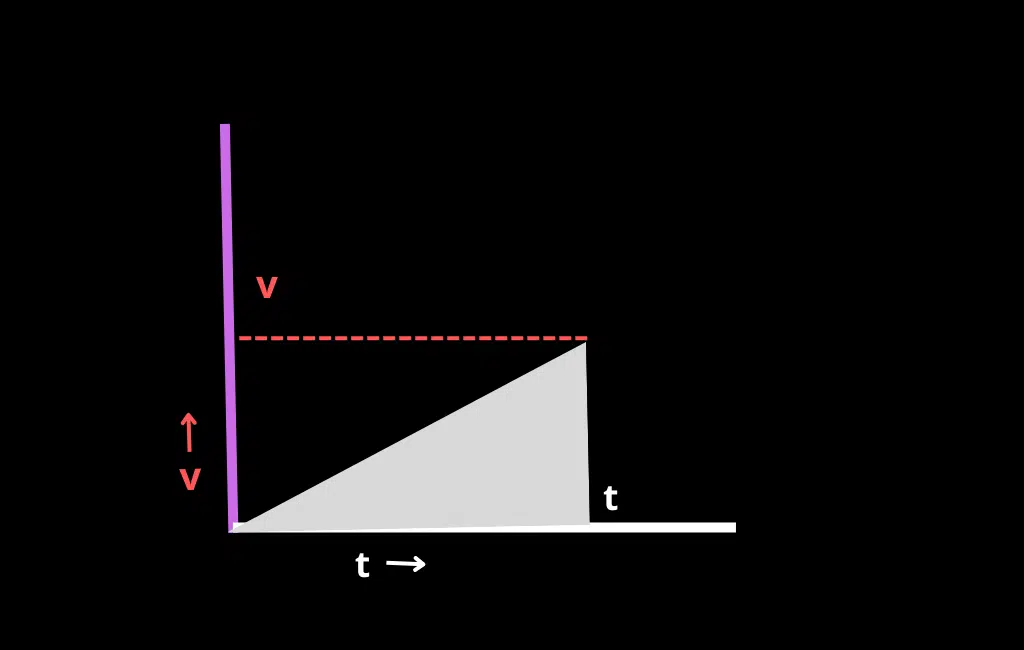

image showing the Constant Acceleration Graph

Variable Acceleration Graph

If the velocity of the body changes unequally in equal intervals of time. Then the acceleration of the body will not be uniform. The body moves along any arbitrary curved path (graph). Point A on the graph corresponds to the time t.

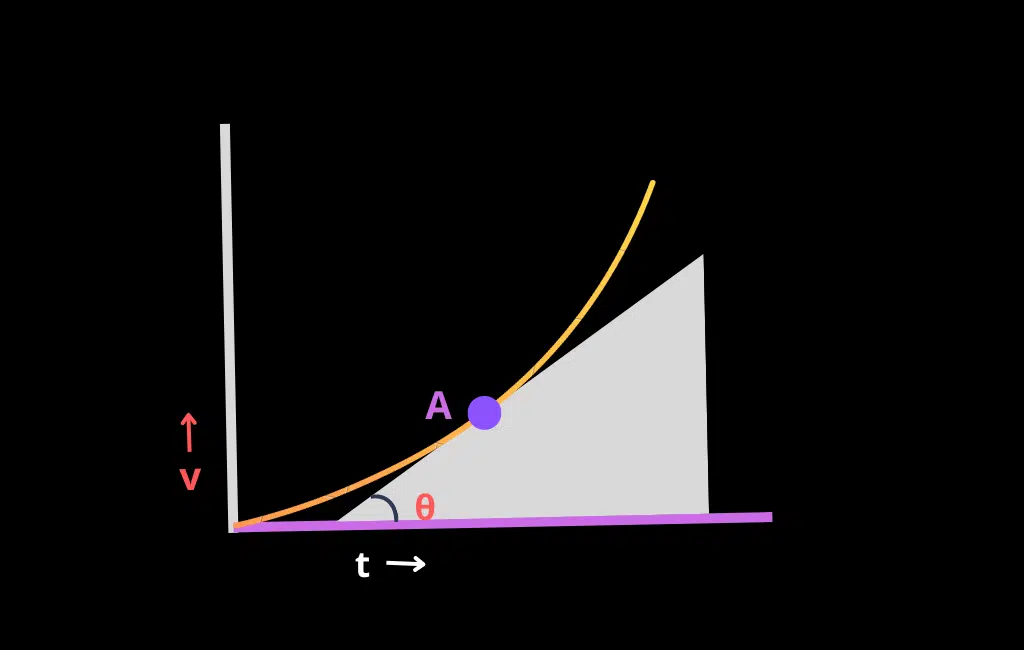

image showing the Variable Acceleration Graph

The slope of the tangent at point A on the velocity-time graph is equal to the instantaneous acceleration.

Determination of Distance by velocity-time graph

The distance moved by an object can also be determined by using a velocity-time graph.

The area between the velocity-time graph and the time axis is numerically equal to the distance covered by the object.

Constant Velocity

Consider if the body moves with constant velocity for time t then the distance covered by the body will be


The same can be calculated from the graph directly by calculating the area under the curve.

In this case, the area under the velocity-time graph is rectangular. So the area under the curve is equal to the area of the rectangle.

Distance covered =Area under the curve=length x breadth

Distance moved = S = vt

Constant Acceleration

The graph is a straight line and the area under the graph is triangular so

Distance moved =S= Area of a triangle

S=1/2xbasex height


An Alternative method to finding Distance

The same can be obtained, as the velocity of the body starts from 0 to v in time t then the average velocity will be.

Screenshot 2022 06 27 151651

Distance covered = Average velocity x time


Frequently Asked Questions(FAQs)

How can we find the distance by the velocity-time graph?

We can find the distance by this formula.
Distance covered =Area under the curve=length x breadth

What is the slope of velocity?

The important principle is that the slope of the line on a velocity-time graph is the same as the acceleration of the object. In order to determine the numerical value of the acceleration, this principle can be used for all velocity-time.

What is the area of the velocity-time graph?

The displacement is represented by the area bound by the line and axes in a time graph. The shaded regions between the line and the time-axis represent the displacement during the stated time interval.
